MTD012156

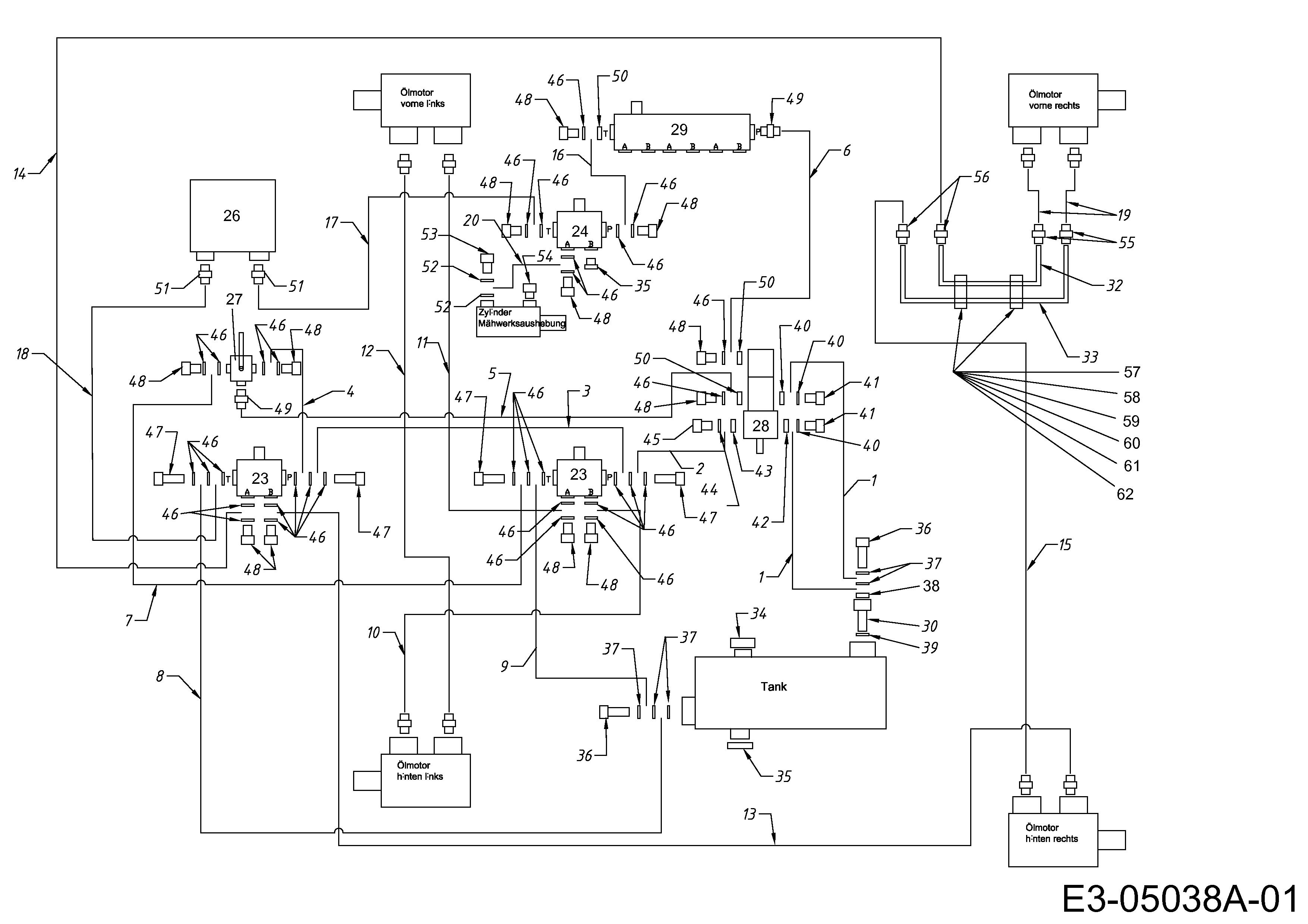

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD012156

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 FG100332 LOW-PRESSURE HOSE 16x500 £166.55 Add
002 FG106258 HYDRAULIKSCHLAUCH 1SNK 12x260 N/A POA
003 FG106274 HYDRAULIKSCHLAUCH 1SNK 10x140 N/A POA
004 FG106272 HYDRAULIKSCHLAUCH 1SNK 10x530 N/A POA
005 FG106545 HYDRAULIKSCHLAUCH 1SNK 10x390 N/A POA
006 FG106544 HYDRAULIKSCHLAUCH 1SNK 08x360 N/A POA
007 FG106269 HYDRAULIKSCHLAUCH 1SNK 10x650 N/A POA
008 FG105046 HYDRAULIKSCHLAUCH 1SNK 12x500 N/A POA
009 FG105419 HYDRAULIKSCHLAUCH 1SNK 12x360 £132.80 Add
010 FG106280 HYDRAULIKSCHLAUCH 1SNK 08x930 N/A POA
011 FG106278 HYDRAULIKSCHLAUCH 1SNK 08x920 N/A POA
012 FG106608 HYDRAULIKSCHLAUCH 1SNK 08x1800 N/A POA
013 FG106278 HYDRAULIKSCHLAUCH 1SNK 08x920 N/A POA
014 FG106283 HYDRAULIKSCHLAUCH 1SNK 08X750 N/A POA
015 FG106518 HYDRAULIKSCHLAUCH 1SNK 08x1670 N/A POA
016 FG106541 HYDRAULIKSCHLAUCH 1SNK 08x800 N/A POA
017 FG107259 FG107259 N/A POA
018 FG106605 SAUGSCHLAUCH GCW.NW 13x720 LG N/A POA
019 FG106287 HYDRAULIKSCHLAUCH 1SNK 08x440 £80.94 Add
020 FG106288 HYDRAULIKSCHLAUCH 1SNK 06x350 N/A POA
023 FG107395 4/3 STEUERVENTIL HDM 140A L100 £339.78 Add
024 FG107394 4/3 STEUERVENTIL HDM 140A L100 £339.78 Add
026 FG106418 ?LK?HLER M18x1,5 19 REIHEN £419.70 Add
027 FG100156 FG100156 N/A POA
028 FG105247 HYDRAULIKPUMPE:KON.WELLE:1xGR2 £1,336.99 Add
029 FG105174 TRIPLE CONTROL BLOCK £676.99 Add
030 FG100002 HYDRAULIC FILTER £70.63 Add
032 FG100805 PIPE INTERIOR:Ø10x1,5x500 N/A POA
033 FG100804 PIPE EXTERNAL:Ò10x1,5x565 N/A POA
034 FG101023 BLEED SCREW + SEAL £44.10 Add
035 FG105716 VERSCHLUSSSCHRAUBE 3/8" N/A POA
036 FG101097 DOUBLE HOLLOW SCREW 1/2" £132.14 Add
037 FG105960 KUPFERRING 1/2" A 22x29x1,5 CU N/A POA
038 FG106463 SEAL RING 22 £17.18 Add
039 FG101096 CUBRIC RING N/A POA
040 FG105960 KUPFERRING 1/2" A 22x29x1,5 CU N/A POA
041 FG100311 HOLLOW SCREW 1/2" (POLE 22mm) £80.94 Add
042 FG106463 SEAL RING 22 £17.18 Add
043 FG105302 SEAL RING 1/2" £9.08 Add
044 FG100305 CUBRIC RING £4.25 Add
045 FG105959 DRUCKHOHLSCHRAUBE 1/2" N/A POA
046 FG100306 CUBRIC RING 3/8" 17x23x1,5 CU £4.25 Add
047 FG105137 FG105137 N/A POA
048 FG100310 SCREW 3/8" N/A POA
049 FG100410 STRAIGHT SCREWING N/A POA
050 FG105499 SEAL RING 3/8" £15.86 Add
051 FG106293 STRAIGHT SCREW-IN BOLTING N/A POA
052 FG105138 CUBRIC RING £3.85 Add
053 FG105097 HOLLOW SCREW 1/4" £13.25 Add
054 FG105107 DRUCKENTL?FTUNGSVENTIL 1/4" £50.09 Add
055 FG100807 ANGLE SCREWING L10 o.m+d £17.31 Add
056 FG106295 GERADE VERSCHRAUBUNG L10 o.m+d N/A POA
057 FG100800 CLAMP HALF/DOUBLE TUBE CLAMPS £8.58 Add
058 710-04402 SCR:HEX:M6x40 DIN 933-8.8: £2.90 Add
059 736-0685 WASHER £3.26 Add
060 712-0689 NUT:HEX:M6-1:DIN 934 £2.33 Add
061 736-0668 WASHER £2.23 Add
062 712-0691 HEX NUT M6 DIN 985 £2.66 Add
