MTD014052

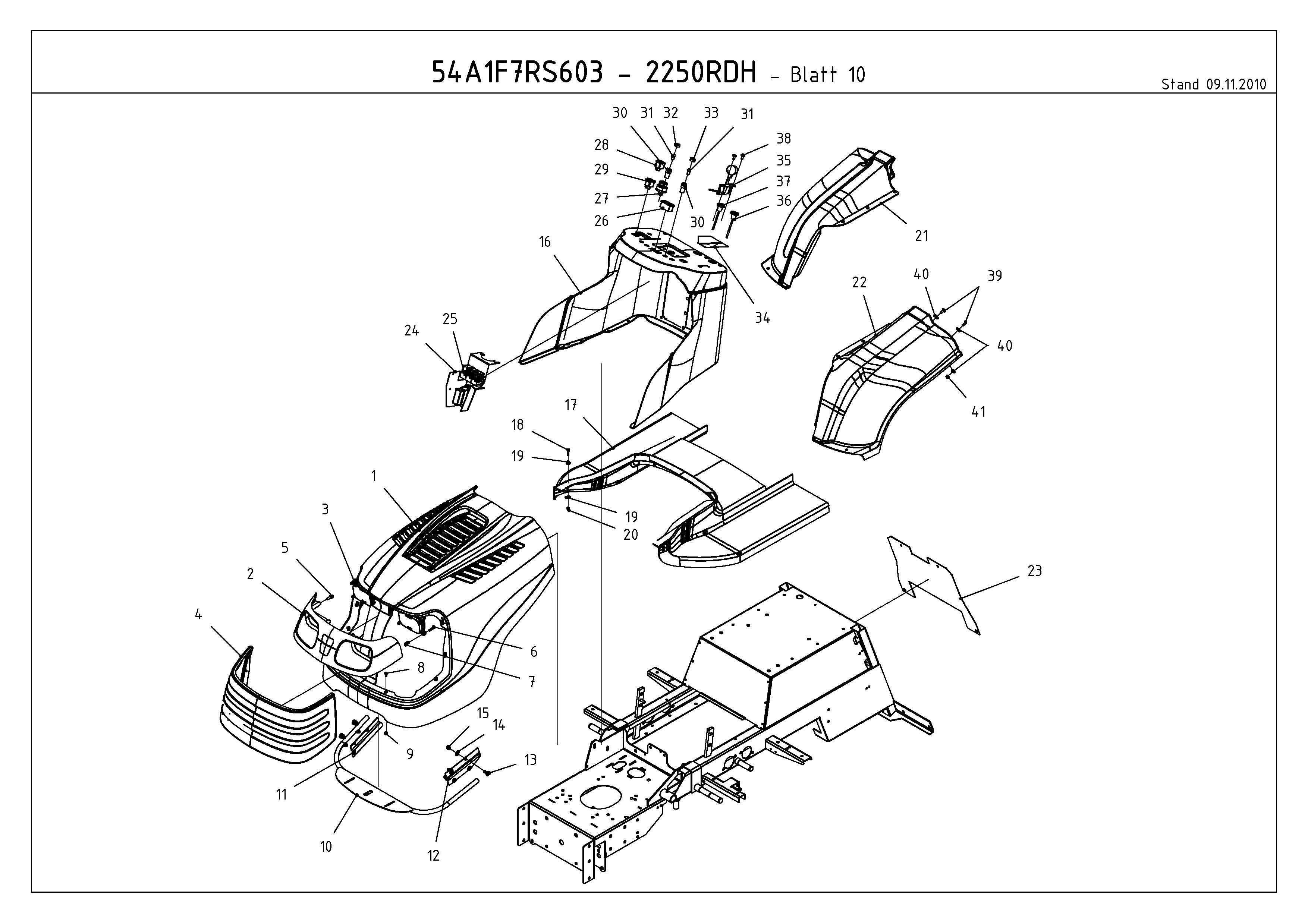

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD014052

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 731-05301A HOOD:CUB 5000/6000 SERIES £221.08 Add
002 731-04211 BEZEL-HEAD LIGHT:5000 £74.17 Add
003 725-04546 LAMP:HEAD:CE £53.54 Add
004 703-3394 SCREEN-INTAKE:6000 £114.18 Add
005 710-0895 SCR:HL:1/4-10:0.750:HXINDWSH £3.15 Add
006 710-0969 SCREW £2.84 Add
007 732-04414 COMP.SPRING:.310 X .710 X .041 £5.47 Add
008 710-0473 SCR:MACH:#10-24:0.500:TRUSPHI £3.57 Add
009 712-0272 NUT SEMS:#10-24 £3.89 Add
010 FG107351 FG107351 N/A POA
011 FG107359 FG107359 N/A POA
012 FG107360 FG107360 N/A POA
013 FG105179 FILLISTER FLANGE HEAD SCREW £4.15 Add
014 736-0700 FLAT WASHER £1.90 Add
015 712-0692 HEX NUT £2.57 Add
016 FG55522 FG55522 £210.86 Add
017 FG55447 TREAD WITH APERTURE £193.02 Add
018 710-1797 HHCS:M5x25:DIN 933-8.8 Zn5glcB £3.41 Add
019 736-0661 WASHER A 5,3 DIN 9021 £3.18 Add
020 712-0675 NUT:HEX:M5 x.80:DIN 985 £7.46 Add
021 FG107332 FG107332 £166.68 Add
022 FG107331 FENDER LEFT £166.68 Add
023 FG106145 FG106145 N/A POA
024 FG100900 FG100900 £200.82 Add
025 FG100037 FG100037 £24.51 Add
026 FG100013 ELAPSED HOUR COUNTER £171.55 Add
027 FG105334 KEY SWITCH £71.65 Add
028 FG100036 ROCKER SWITCH 2-POLE, GREEN £28.32 Add
029 FG100035 ROCKER SWITCH 2-POLE, BLACK £16.59 Add
030 FG105500 Ò16,2mm TYP RAFI 1.60502.098 £21.79 Add
031 FG105039 FG105039 £9.36 Add
032 FG100033 SIGNAL LAMP, BLIND GREEN £6.44 Add
033 FG100034 SIGNAL LAMP BLIND RED £6.44 Add
034 FG12822 VERSTÄRKUNG GASZUG N/A POA
035 FG100350 THROTTLE CABLE £50.69 Add
036 FG100351 HAND BRAKE CABLE £49.64 Add
037 FG100349 STARTER CABLE £57.21 Add
038 710-1017 TAP SCREW £2.52 Add
039 FG100048 FILLISTER FLANGE HEAD SCREW £3.38 Add
040 736-0685 WASHER £2.76 Add
041 712-0691 HEX NUT M6 DIN 985 £1.28 Add
