MTD014047

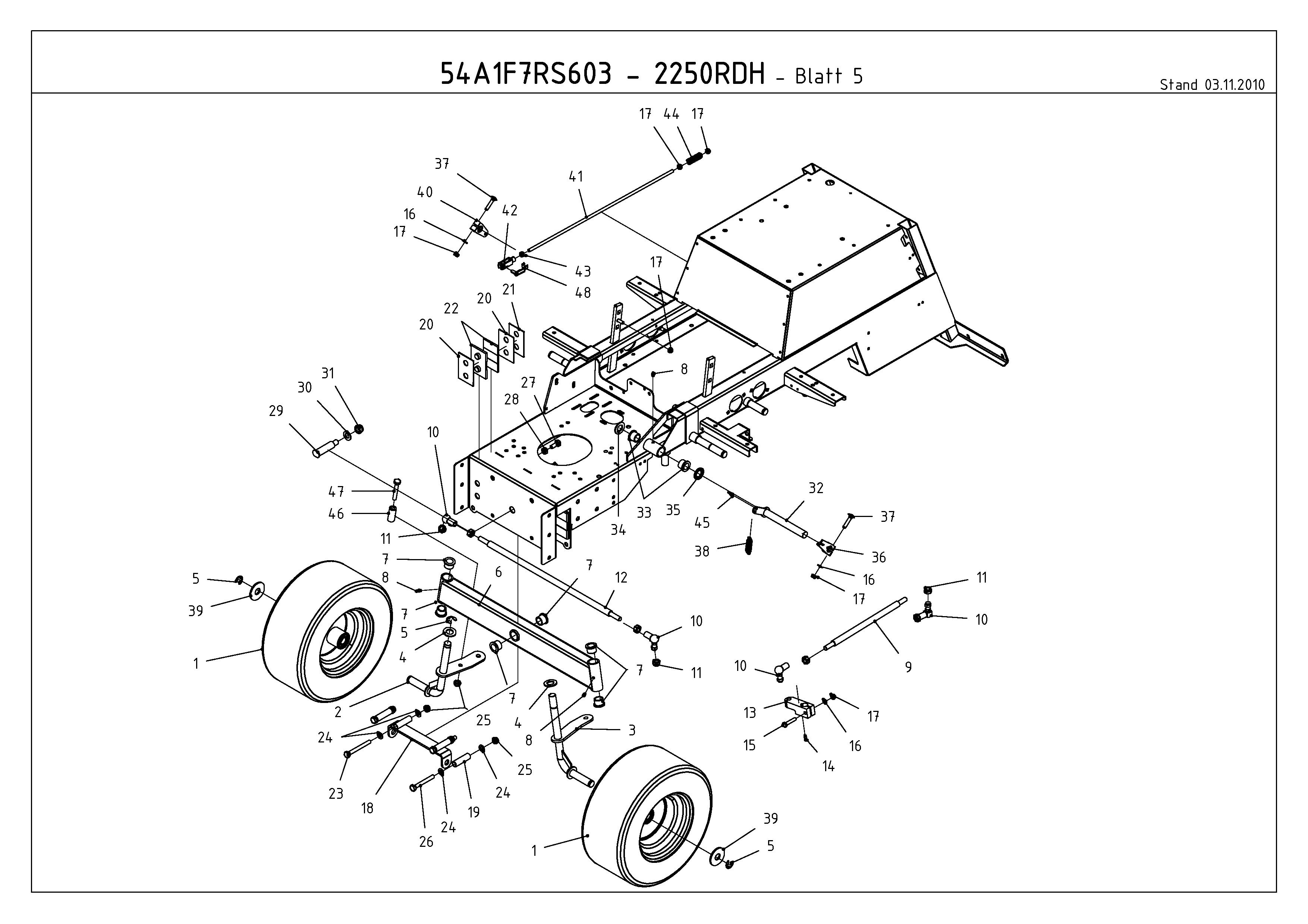

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD014047

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 FG105488 FRONT WHEEL, LAWN TYRE N/A POA
002 FG105669 JOURNAL RIGHT £54.29 Add
003 FG105668 JOURNAL LEFT £58.68 Add
004 FG100056 WASHER £3.25 Add
005 FG100083 RETAINING WASHER £21.66 Add
006 FG105659 FRONT AXLE CASING ALL-WHEEL £146.19 Add
007 FG100295 FLOATING BEARING WITH COLLAR £19.08 Add
008 FG105045 CONE LUBRICATING ELEMENT £5.05 Add
009 FG100387 STEERING ROD N/A POA
010 FG100177 ANGLE JOINT £42.42 Add
011 FG100138 HEX-NUT SELF-LOCKING £2.69 Add
012 FG105674 TRACK ROD LONG £73.27 Add
013 FG100298 STEERING ARM, FRONT AXLE £97.16 Add
014 FG100087 KEY £3.95 Add
015 710-1308 HEX BOLT £4.18 Add
016 736-0700 FLAT WASHER £1.90 Add
017 712-0692 HEX NUT £2.57 Add
018 FG105834 RETAINER BRACKET £75.61 Add
019 FG100363 SPACER TUBE £16.59 Add
020 FG105665 DISTANCE PLATE FRONT AXLE 2 N/A POA
021 FG105664 DISTANCE PLATE FRONT AXLE 3 £17.84 Add
022 FG105658 LOWER GUIDANCE £10.96 Add
023 FG106301 HEX BOLT £6.87 Add
024 736-0734 WASH:FLAT:10,5 IDx20 OD DIN125 £3.57 Add
025 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.57 Add
026 FG100117 HEX BOLT £5.53 Add
027 FG100114 HEX BOLT £5.05 Add
028 712-0635 NUT M10-8 DIN 934 £2.42 Add
029 FG100364 AXLE BOLT FRONT AXLE £35.21 Add
030 FG101008 WASHER £3.59 Add
031 FG100135 HEX NUT SELFLOCKING £4.15 Add
032 FG100200 HANDBRAKE N/A POA
033 FG100295 FLOATING BEARING WITH COLLAR £19.08 Add
034 FG100056 WASHER £3.25 Add
035 FG105773 SPRING WASHER £8.65 Add
036 FG100208 DETENT LEVER HANDBRAKE £24.51 Add
037 710-1700 CARRIAGE BOLT M8x40 DIN 603-8. £3.21 Add
038 FG100166 EXTENSION SPRING £8.25 Add
039 FG100101 washer £4.84 Add
040 FG100198 CLAMP LEVER, CONTROLLER N/A POA
041 FG105731 BRAKE LEVERAGE N/A POA
042 711-1407 LINK £11.71 Add
043 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.33 Add
044 FG105732 COMPRESSION SPRING £15.88 Add
045 FG100347 TRUNNING £21.66 Add
046 750-04315 SPCR:.75 OD x.34 ID x 1.80 LG £18.76 Add
047 FG106472 SECHSKANTSCHRAUBE M10X65 N/A POA
048 726-0457 CLIP £7.96 Add
