MTD014062

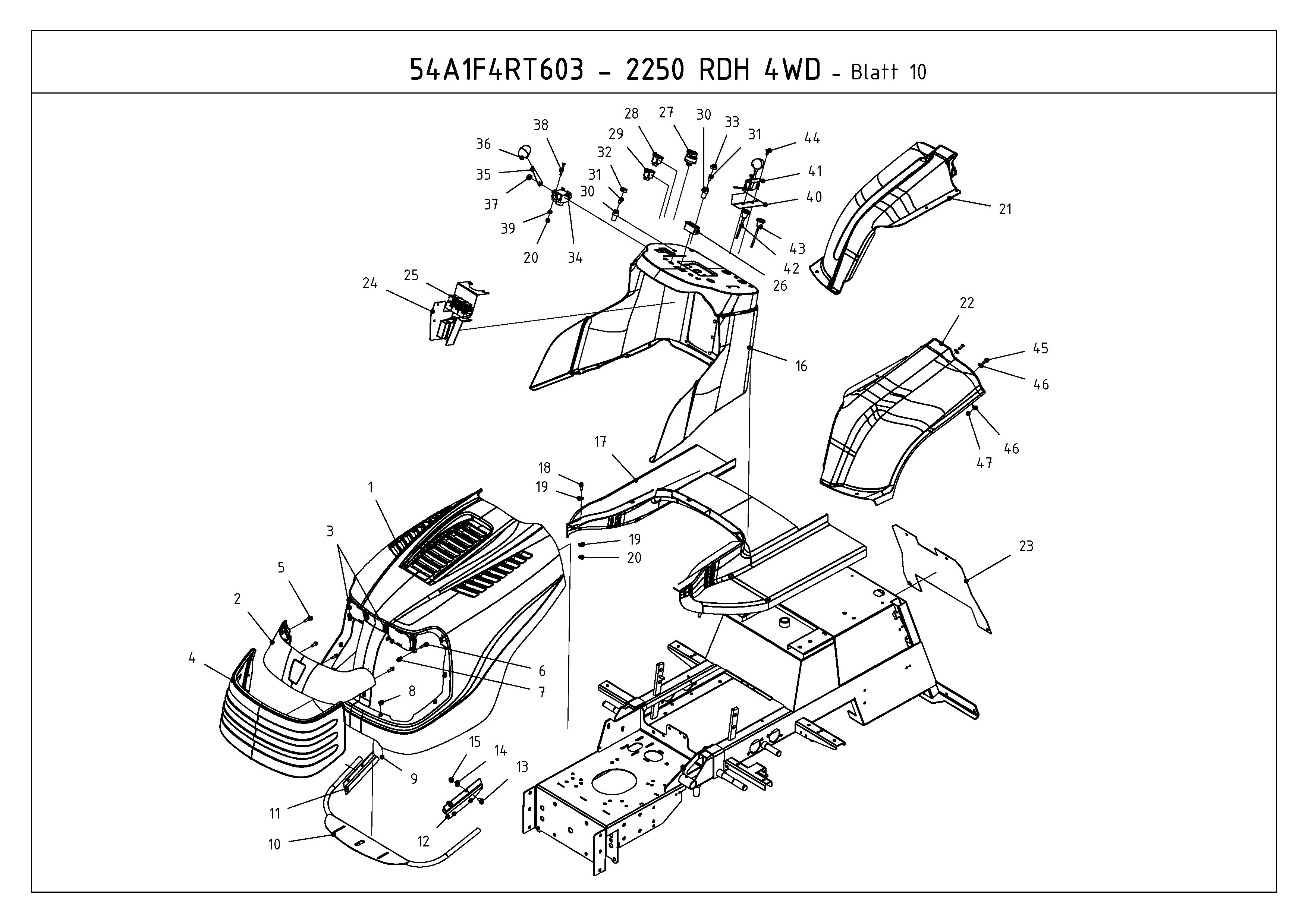

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	731-05301A	HOOD:CUB 5000/6000 SERIES	£322.46	Add
002	731-04211	BEZEL-HEAD LIGHT:5000	£77.68	Add
003	725-04546	LAMP:HEAD:CE	£122.55	Add
004	703-3394	SCREEN-INTAKE:6000	£126.49	Add
005	710-0895	SCR:HL:1/4-10:0.750:HXINDWSH	£3.51	Add
006	710-0969	SCREW	£3.35	Add
007	732-04414	COMP.SPRING:.310 X .710 X .041	£5.55	Add
008	710-0473	SCR:MACH:#10-24:0.500:TRUSPHI	£4.62	Add
009	712-0272	NUT SEMS:#10-24	£3.39	Add
010	FG107351	FG107351	N/A	POA
011	FG107359	FG107359	N/A	POA
012	FG107360	FG107360	N/A	POA
013	FG105179	FILLISTER FLANGE HEAD SCREW	£4.39	Add
014	736-0700	FLAT WASHER	£2.63	Add
015	712-0692	HEX NUT	£3.10	Add
016	FG55522	ARMATURENBRETT:KUNSTSTOFF	£327.19	Add
017	FG55447	TREAD WITH APERTURE	£282.67	Add
018	710-1797	HHCS:M5x25:DIN 933-8.8 Zn5glcB	£3.59	Add
019	736-0661	WASHER A 5,3 DIN 9021	£3.85	Add
020	712-0675	NUT:HEX:M5 x.80:DIN 985	£4.25	Add
021	FG107332	KOTFL?GEL RECHTS	£148.08	Add
022	FG107331	FENDER LEFT	£148.08	Add
023	FG106145	FG106145	N/A	POA
024	FG100900	KABELSTRANG ARMATURENBRETT	£294.03	Add
025	FG100037	RELAIS 896 H 50A 12V	£19.68	Add
026	FG100013	ELAPSED HOUR COUNTER	£158.72	Add
027	FG105334	IGNITION LOCK	£89.42	Add
028	FG100036	ROCKER SWITCH 2-POLE, GREEN	£23.84	Add
029	FG100035	ROCKER SWITCH 2-POLE, BLACK	£14.06	Add
030	FG105500	FASSUNG OHNE BLENDE E 10	£17.41	Add
031	FG105039	SKALENLAMPE SOCKEL E10	£7.77	Add
032	FG100033	SIGNAL LAMP, BLIND GREEN	£5.41	Add
033	FG100034	SIGNAL LAMP BLIND RED	£5.41	Add
034	FG100156	FG100156	N/A	POA
035	FG107411	BETÄTIGUNGSHEBEL 2.GANG	N/A	POA
036	FG101022	GASZUGKNOPF	£6.95	Add
037	FG100376	FG100376	N/A	POA
038	FG105051	6KT-SCHRAUBE M5x40 DIN 933-8.8	N/A	POA
039	736-0602	WASHER A 5,3 DIN 125	£2.70	Add
040	FG12822	VERSTÄRKUNG GASZUG	N/A	POA
041	FG100350	THROTTLE CABLE	£42.40	Add
042	FG100351	HAND BRAKE CABLE	£41.59	Add
043	FG100349	STARTER CABLE	£47.88	Add
044	710-1017	TAP SCREW	£2.97	Add
045	FG100048	FILLISTER FLANGE HEAD SCREW	£3.05	Add
046	736-0685	WASHER	£3.26	Add
047	712-0691	HEX NUT M6 DIN 985	£2.66	Add
