MTD012116

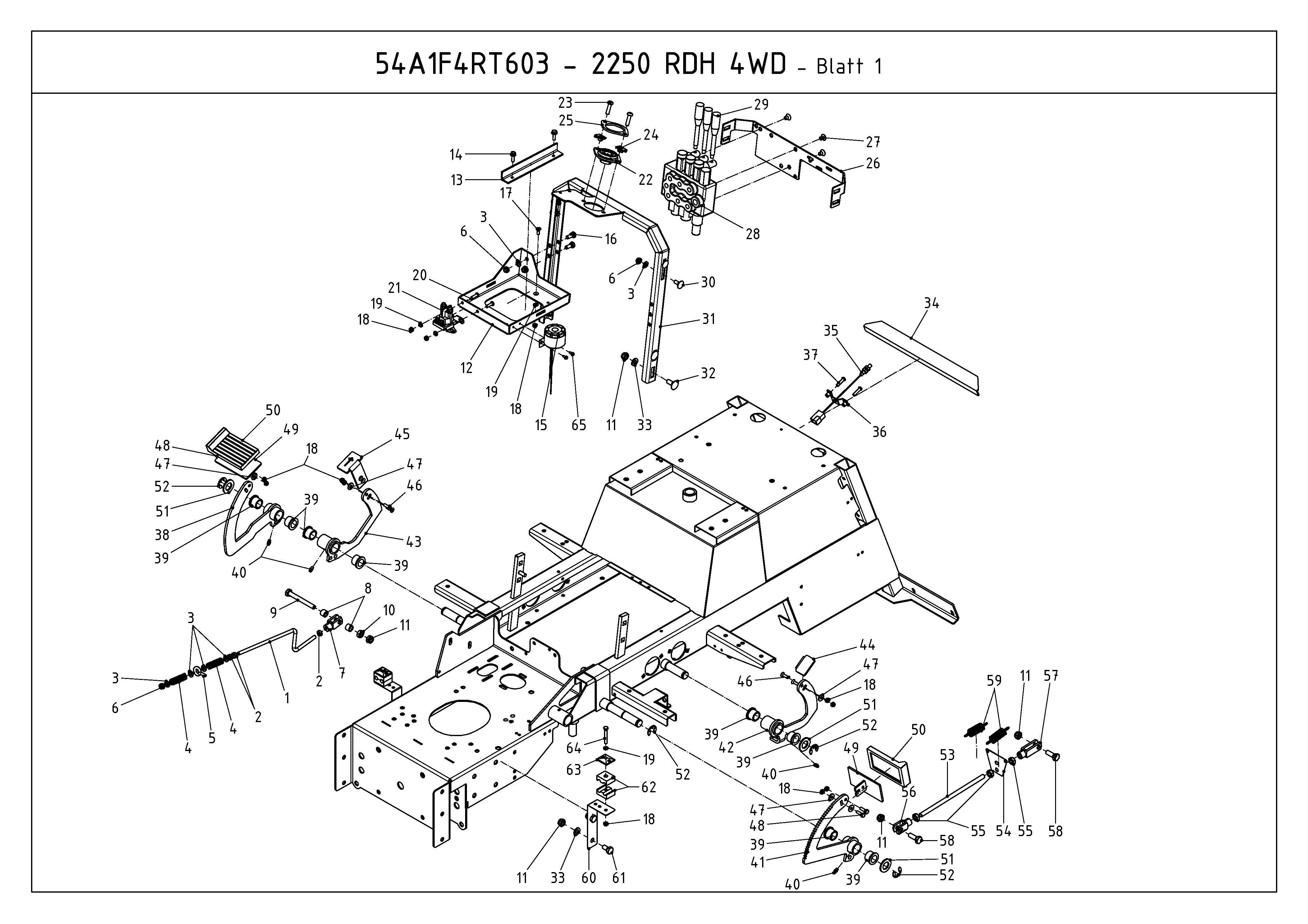

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD012116

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 FG107295 ANSTEUERUNG STEUERVENTIL N/A POA
002 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.33 Add
003 736-0700 FLAT WASHER £1.90 Add
004 FG105732 COMPRESSION SPRING £15.88 Add
005 FG13134 ÖSENSCHRAUBE M8x15 St GAL ZINC N/A POA
006 712-0692 HEX NUT £2.57 Add
007 FG106523 CLEVIS RIGHT-HAND THREAD £23.46 Add
008 FG107293 SPACER N/A POA
009 FG105049 HEXAGON SCREW £5.05 Add
010 FG105596 HEX NUT, THIN TYPE £3.04 Add
011 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.57 Add
012 FG105372 LF BATTERY BRACKET £92.56 Add
013 FG12603 BATTERIEKLEMMUNG N/A POA
014 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
015 FG12544 FG12544 £81.59 Add
016 710-1681 HEX BOLT M8 X 20 DIN 933 (RED) £2.75 Add
017 FG100093 COUNTERSUNK SOCKET SCREW £2.35 Add
018 712-0691 HEX NUT M6 DIN 985 £1.28 Add
019 736-0668 WASHER £1.91 Add
020 FG105607 FILLISTER HEAD SCREW WITH £3.25 Add
021 FG106327 SELENOID - 424285 £83.64 Add
022 FG105199 FLANGE BEARING £31.72 Add
023 FG55451 FG55451 N/A POA
024 726-0365 SPEED NUT M8, U-TYPE 000.02.520 £4.33 Add
025 FG105672 INDERMEDIATE PLATE, STEERING N/A POA
026 FG105172 CONTROL BLOCK RETAINER N/A POA
027 FG105243 COUNTERSUNK SOCKET SCREW N/A POA
028 FG105174 TRIPLE CONTROL BLOCK £554.33 Add
029 FG105174HEB FG105174 £25.42 Add
030 FG100079 ROUND-HEAD SCREW £3.73 Add
031 FG12821 HALTEBÜGEL ARMATURENBRETT N/A POA
032 FG100077 ROUND-HEAD SCREW N/A POA
033 736-0734 WASH:FLAT:10,5 IDx20 OD DIN125 £3.57 Add
034 FG105481 SEALING PROFILE £43.46 Add
035 FG106513 POSITION SENSOR £67.49 Add
036 FG107218 HOLDER CONTACT £32.63 Add
037 FG106390 LINSENFLANSCHKOPFSCHR.M6x25 N/A POA
038 FG100355 PEDAL ARM DRIVE AXLE N/A POA
039 FG100295 FLOATING BEARING WITH COLLAR £19.08 Add
040 FG105045 CONE LUBRICATING ELEMENT £5.05 Add
041 FG100389 PEDAL RETAINER, BRAKE N/A POA
042 FG105730 PEDAL RETAINER DIFF. BARRIER N/A POA
043 FG105143 PEDAL RETAINER REVERSE GEAR N/A POA
044 FG105933 DIFFERENTIAL ACTUATION N/A POA
045 FG105667 RETURN PEDAL £34.65 Add
046 FG105059 COUNTER SUNK SOCKET SCREW £2.35 Add
047 736-0685 WASHER £2.76 Add
048 710-1753 HEX. SCREW:DIN 933-8.8 M6x20mm £3.41 Add
049 FG100390 PEDAL PLATE FORWARD N/A POA
050 FG100004 pedal rubber N/A POA
051 FG100056 WASHER £3.25 Add
052 FG100083 RETAINING WASHER £21.66 Add
053 FG100369 OPERATION LEVERAGE, BRAKE £29.02 Add
054 FG100196 FASTENING PLATE, SPRING £26.16 Add
055 712-0635 NUT M10-8 DIN 934 £2.42 Add
056 FG55294 GABELKOPF A 10x20-M10 DIN71752 N/A POA
057 FG55295 FG55295 £15.88 Add
058 FG105052 HEXAGONAL SCREW £2.69 Add
059 FG100163 TENSION SPRING £17.25 Add
060 FG106123 FG106123 N/A POA
061 710-1785 Screw 21.1441.87 £3.11 Add
062 FG100800 CLAMP HALF/DOUBLE TUBE CLAMPS £10.47 Add
063 FG105157 FG105157 N/A POA
064 FG105096 FG105096 N/A POA
065 710-0227 SCR:AB:#8-18:0.500:HXINDWH £2.66 Add
