MTD012077

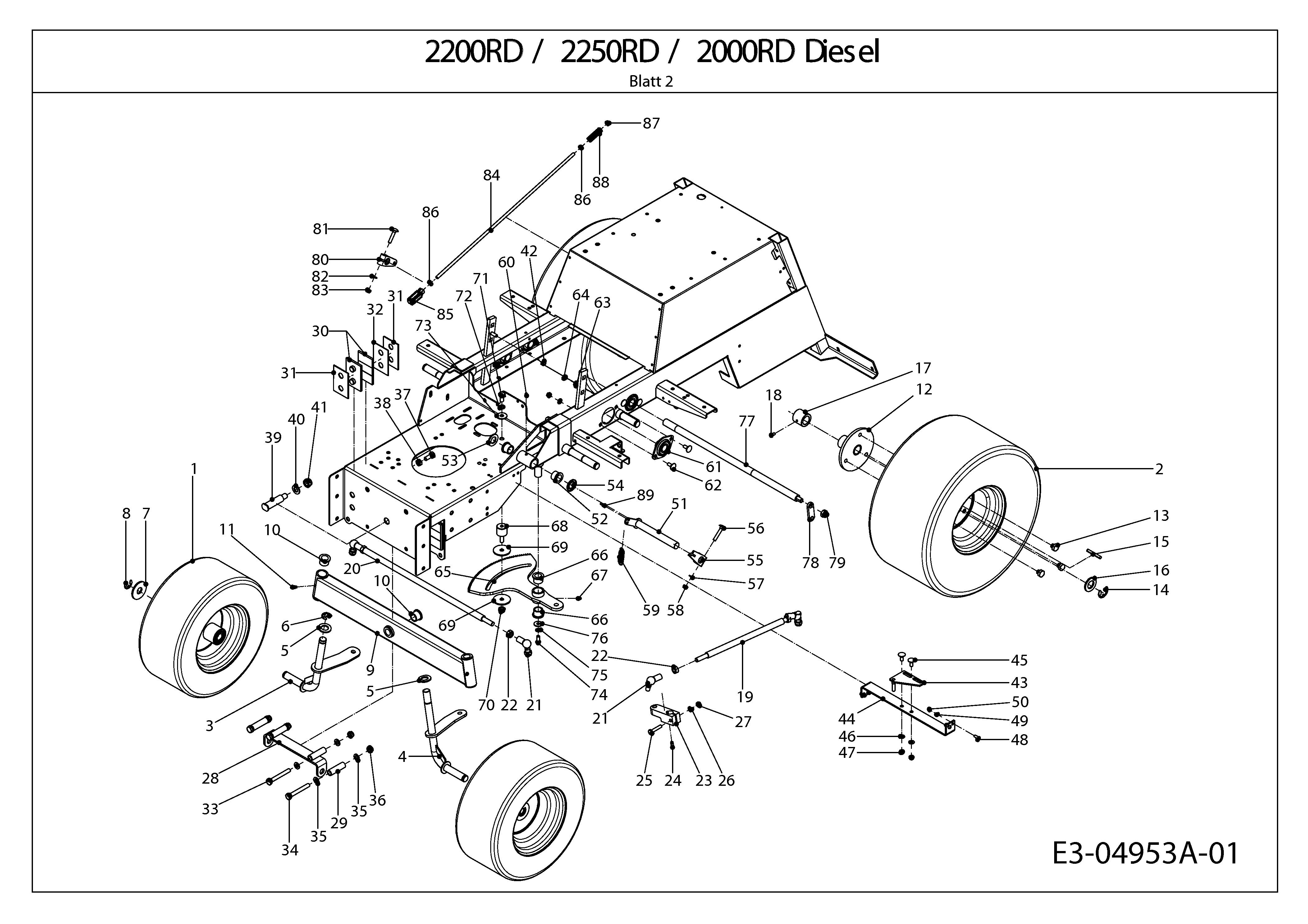

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD012077

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 FG105488 FRONT WHEEL, LAWN TYRE £198.64 Add
002 FG105489 BACK WHEEL, LAWN TYRE £339.56 Add
003 FG105669 JOURNAL RIGHT £116.79 Add
004 FG105668 JOURNAL LEFT £125.51 Add
005 FG100056 WASHER £2.93 Add
006 FG100083 RETAINING WASHER £23.81 Add
007 FG100101 WASHER £4.11 Add
008 FG100083 RETAINING WASHER £23.81 Add
009 FG105659 FRONT AXLE CASING ALL-WHEEL £159.34 Add
010 FG100295 FLOATING BEARING WITH COLLAR £16.13 Add
011 FG105045 CONE LUBRICATING ELEMENT £4.36 Add
012 FG107102 RETAINER REAR AXLE, SHORT £159.38 Add
013 FG105662 WHEEL SCREW WITH CONE COLLAR £14.56 Add
014 FG105859 CIRCLIP £5.31 Add
015 FG105857 KEY £4.11 Add
016 FG105100 WASHER £3.70 Add
017 FG107105 spacer (slotted) N/A POA
018 710-1691 HEX. SCREW:M6X12 DIN 933 8.8 £4.11 Add
019 FG100387 STEERING ROD N/A POA
020 FG105674 TRACK ROD LONG £61.19 Add
021 FG100177 ANGLE JOINT £35.47 Add
022 FG100138 HEX-NUT SELF-LOCKING £2.54 Add
023 FG100298 STEERING ARM, FRONT AXLE £120.94 Add
024 FG100087 KEY £3.45 Add
025 710-1308 HEX BOLT £3.80 Add
026 736-0700 FLAT WASHER £2.63 Add
027 712-0692 HEX NUT £3.10 Add
028 FG105834 RETAINER BRACKET £79.22 Add
029 FG100363 SPACER TUBE £13.39 Add
030 FG105658 LOWER GUIDANCE £9.33 Add
031 FG105665 DISTANCE PLATE FRONT AXLE 2 N/A POA
032 FG105664 DISTANCE PLATE FRONT AXLE 3 £12.34 Add
033 FG106301 HEX BOLT £5.67 Add
034 FG100117 HEX BOLT £4.76 Add
035 736-0734 WASH:FLAT:10,5 IDx20 OD DIN125 £3.20 Add
036 FG100137 NUT:M10x1.5 DIN 985 NYLOCK £4.00 Add
037 FG100114 HEX BOLT £5.40 Add
038 712-0635 NUT M10-8 DIN 934 £2.93 Add
039 FG100364 AXLE BOLT FRONT AXLE £38.87 Add
040 FG101008 WASHER £3.20 Add
041 FG100135 HEX NUT SELFLOCKING £3.59 Add
042 712-0692 HEX NUT £3.10 Add
043 FG101025 CLUTCH BRACE £35.06 Add
044 FG105768 CLUTCH FASTENER N/A POA
045 FG100079 ROUND-HEAD SCREW £3.34 Add
046 736-0700 FLAT WASHER £2.63 Add
047 712-0692 HEX NUT £3.10 Add
048 FG100048 FILLISTER FLANGE HEAD SCREW £3.05 Add
049 736-0685 WASHER £3.26 Add
050 712-0691 HEX NUT M6 DIN 985 £2.66 Add
051 FG100200 HANDBRAKE N/A POA
052 FG100295 FLOATING BEARING WITH COLLAR £16.13 Add
053 FG100056 WASHER £2.93 Add
054 FG105773 SPRING WASHER £7.13 Add
055 FG100208 RASTHEBEL:BLAU VERZINKT £19.68 Add
056 710-1700 CARRIAGE BOLT M8x40 DIN 603-8. £4.11 Add
057 736-0700 FLAT WASHER £2.63 Add
058 712-0692 HEX NUT £3.10 Add
059 FG100166 EXTENSION SPRING £6.86 Add
060 FG105045 CONE LUBRICATING ELEMENT £4.36 Add
061 FG105199 FLANGE BEARING £26.57 Add
062 FG100079 ROUND-HEAD SCREW £3.34 Add
063 736-0700 FLAT WASHER £2.63 Add
064 712-0692 HEX NUT £3.10 Add
065 FG105720 STEERING SECTOR £132.04 Add
066 FG100295 FLOATING BEARING WITH COLLAR £16.13 Add
067 FG105045 CONE LUBRICATING ELEMENT £4.36 Add
068 FG100392 STEERING SEGMENT LEADING £25.25 Add
069 FG105295 SUPPORTING WASHER, STEERING £15.36 Add
070 712-06378 N/A POA
071 710-1785 Screw 21.1441.87 £2.90 Add
072 736-0686 NO LONGER AVAILABLE N/A POA
073 736-0702 WASHER £2.40 Add
074 FG107311 LINSENFLANSCHKOPFSCHR.M8x16 N/A POA
075 736-0649A WASHER:LOCK:B8:DIN 12 736-0649 £2.70 Add
076 736-0701 WASH:FLAT:8.4x24x2.00 DIN 9021 £3.80 Add
077 FG-105733 N/A POA
078 FG105838 LEVER AT BRAKE SHAFT N/A POA
079 FG100138 HEX-NUT SELF-LOCKING £2.54 Add
080 FG100198 CLAMP LEVER, CONTROLLER N/A POA
081 710-1700 CARRIAGE BOLT M8x40 DIN 603-8. £4.11 Add
082 736-0700 FLAT WASHER £2.63 Add
083 712-0692 HEX NUT £3.10 Add
084 FG105731 BRAKE LEVERAGE N/A POA
085 FG100176 CLEVIS RIGHT-HAND THREAD £22.29 Add
086 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.72 Add
087 712-0692 HEX NUT £3.10 Add
088 FG105732 COMPRESSION SPRING £12.75 Add
089 FG100347 TRUNNING £17.31 Add
