MTD012147

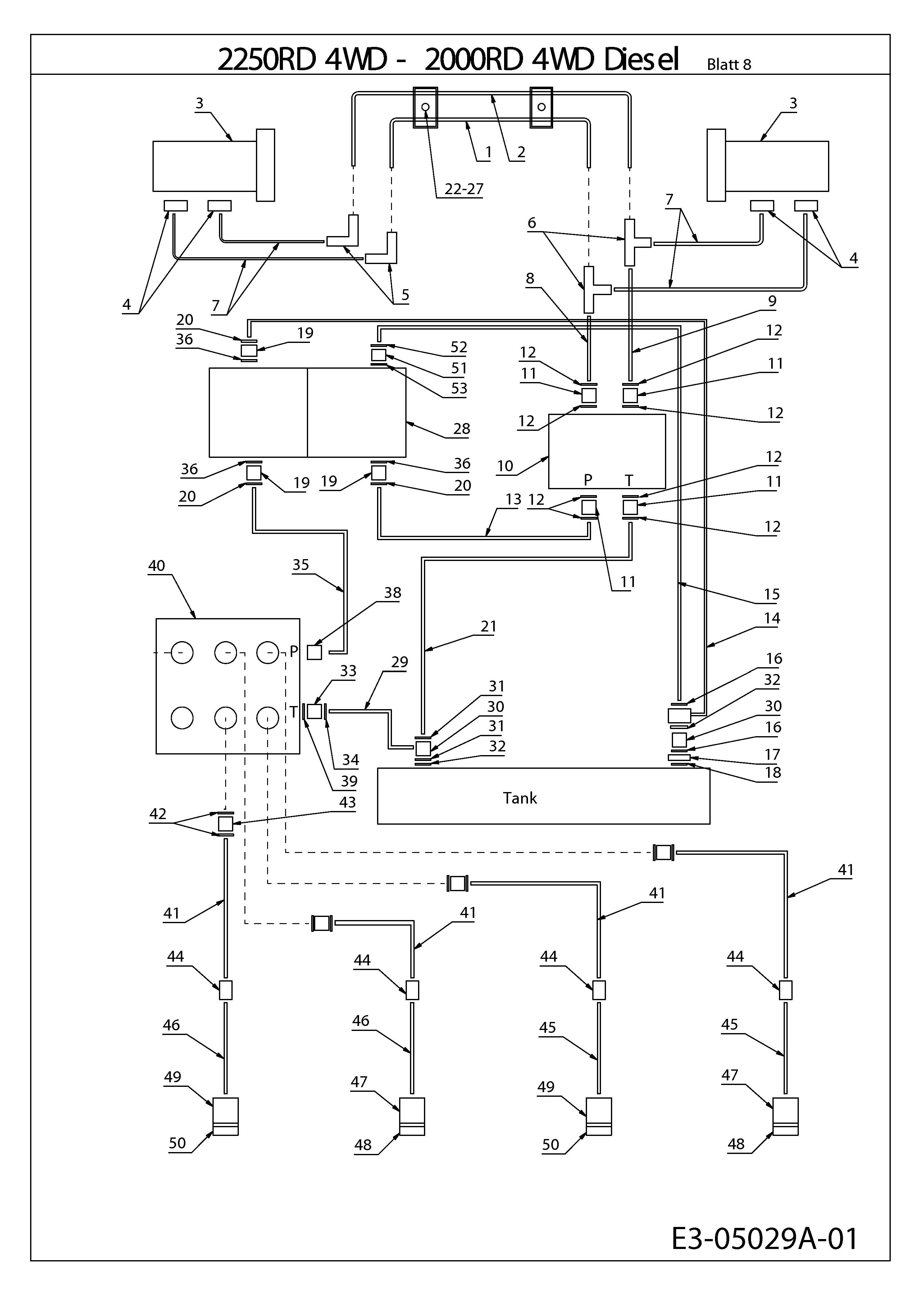

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD012147

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 FG100805 PIPE INTERIOR:Ø10x1,5x500 N/A POA
002 FG100804 PIPE EXTERNAL:Ò10x1,5x565 N/A POA
003 FG106248 OIL ENGINE £375.36 Add
004 FG100801 STRAIGHT SCREW-IN BOLTING £26.16 Add
005 FG100807 ANGLE SCREWING L10 o.m+d £21.66 Add
006 FG100806 T-SHAPE SCREW CONNECTION L10 £27.07 Add
007 FG105753 HYDRAULIC HOSE 1SNK 06X440 £65.88 Add
008 FG105748 HYDRAULIC HOSE 1SNK 08x320 N/A POA
009 FG105749 HYDRAULIC HOSE 1SNK 08x300 N/A POA
010 FG105381 CONTROL VALVE £224.31 Add
011 FG100330 HOLLOW SCREW 3/8" SHORT 34mm N/A POA
012 FG100306 CUBRIC RING 3/8" 17x23x1,5 CU £5.05 Add
013 FG105751 HYDRAULIC HOSE 1SNK 10x300 £91.50 Add
014 FG106033 SIPHON PIPE GCW.NW 13x860 LG £151.08 Add
015 FG105752 SIPHON PIPE GCW.NW 16x860 £182.15 Add
016 FG100305 CUBRIC RING £5.05 Add
017 FG100002 HYDRAULIC FILTER £67.49 Add
018 FG101096 CUBRIC RING N/A POA
019 FG100330 HOLLOW SCREW 3/8" SHORT 34mm N/A POA
020 FG100306 CUBRIC RING 3/8" 17x23x1,5 CU £5.05 Add
021 FG105750 HYDRAULIC HOSE 1SNK 12x1200 N/A POA
022 FG100800 CLAMP HALF/DOUBLE TUBE CLAMPS £10.47 Add
023 FG106139 HEXAGONAL SCREW N/A POA
024 736-0685 WASHER £2.76 Add
025 FG100383 SPACER N/A POA
026 712-0691 HEX NUT M6 DIN 985 £1.28 Add
027 712-0689 NUT:HEX:M6-1:DIN 934 £2.16 Add
028 FG100158 TWIN-GEAR PUMP £676.67 Add
029 FG105750 HYDRAULIC HOSE 1SNK 12x1200 N/A POA
030 FG101097 DOUBLE HOLLOW SCREW 1/2" £112.29 Add
031 FG100305 CUBRIC RING £5.05 Add
032 FG105302 SEAL RING 1/2" £11.16 Add
033 FG100330 HOLLOW SCREW 3/8" SHORT 34mm N/A POA
034 FG100306 CUBRIC RING 3/8" 17x23x1,5 CU £5.05 Add
035 FG105177 HYDRAULIC HOSE 1SNK 08x550 £74.00 Add
036 FG106463 SEAL RING 22 £21.46 Add
038 FG100410 STRAIGHT SCREWING N/A POA
039 FG105499 SEAL RING 3/8" £19.64 Add
040 FG105174 TRIPLE CONTROL BLOCK £554.33 Add
041 FG105148 HYDRAULIC HOSE 1SNK 06x430 N/A POA
042 FG105138 CUBRIC RING £4.29 Add
043 FG105097 HOLLOW SCREW 1/4" £16.37 Add
044 FG106236 GERADE VERSCHRAUBUNG G-L06 N/A POA
045 FG105145 HYDRAULIC HOSE 1SNK 06x1050 N/A POA
046 FG105171 HYDRAULIC HOSE 1SNK 06x1180 £86.36 Add
047 FG105140 FIRG SOCKET 1/4"BSP BGR.1 £149.76 Add
048 FG105134 DUST CAP SOCKET £20.19 Add
049 FG105141 PLUG A7 Bgr 1 SCHOTT £79.57 Add
050 FG105133 DUST CAP PLUG £19.64 Add
051 FG100311 HOLLOW SCREW 1/2" (POLE 22mm) £77.28 Add
052 FG100305 CUBRIC RING £5.05 Add
053 FG106463 SEAL RING 22 £21.46 Add
