MTD012143

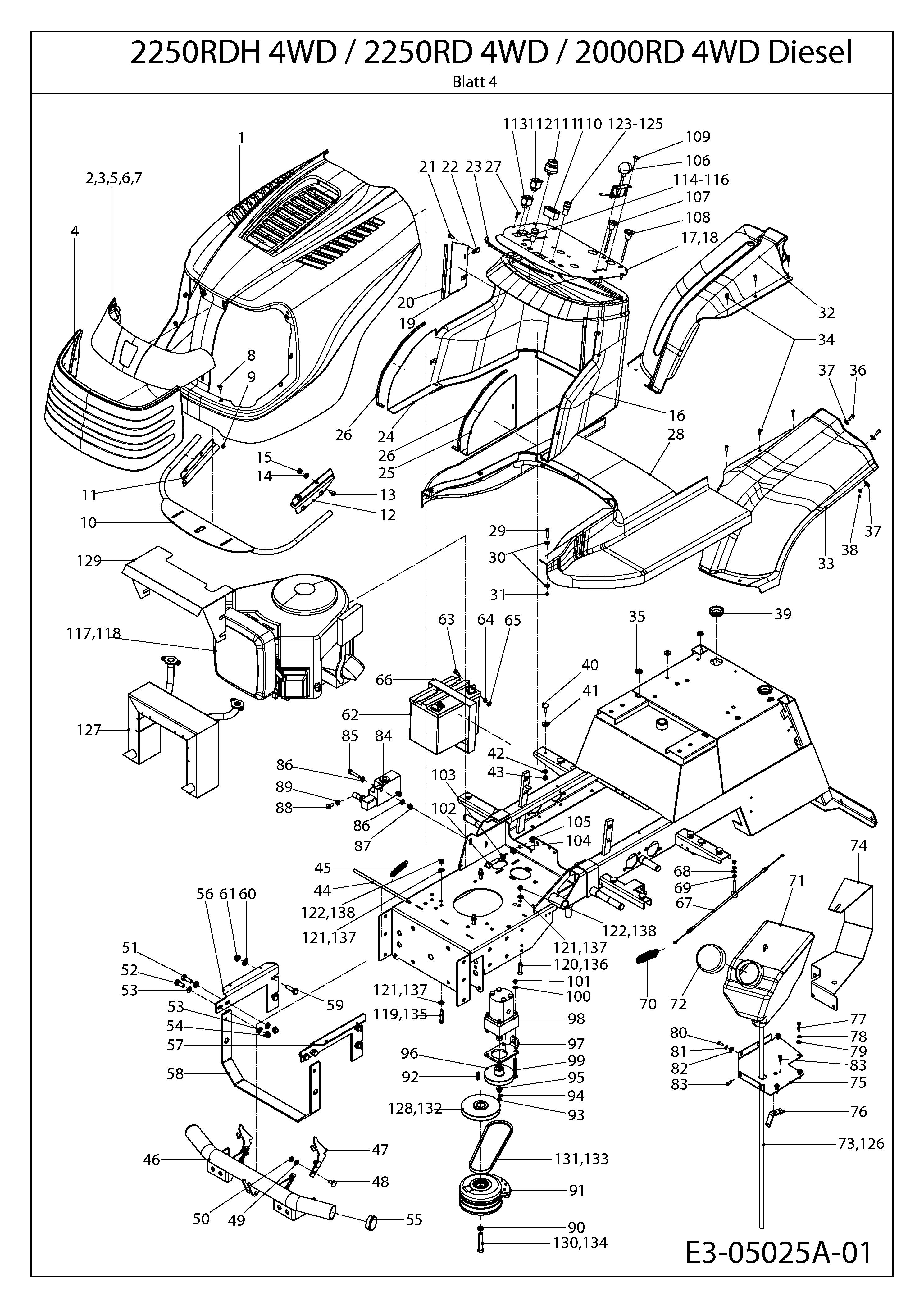

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD012143

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 731-05301A HOOD:CUB 5000/6000 SERIES £221.08 Add
002 731-04211 BEZEL-HEAD LIGHT:5000 £74.17 Add
003 725-04546 LAMP:HEAD:CE £53.54 Add
004 703-3394 SCREEN-INTAKE:6000 £114.18 Add
005 710-0895 SCR:HL:1/4-10:0.750:HXINDWSH £3.15 Add
006 710-0969 SCREW £2.84 Add
007 732-04414 COMP.SPRING:.310 X .710 X .041 £5.47 Add
008 710-0473 SCR:MACH:#10-24:0.500:TRUSPHI £3.57 Add
009 712-0272 NUT SEMS:#10-24 £3.89 Add
010 FG107351 FG107351 N/A POA
011 FG107359 FG107359 N/A POA
012 FG107360 FG107360 N/A POA
013 FG105179 FILLISTER FLANGE HEAD SCREW £4.15 Add
014 736-0700 FLAT WASHER £1.90 Add
015 712-0692 HEX NUT £2.57 Add
016 FG107333 ARMATURENBRETT:MTD VARIANTE N/A POA
017 FG107335 FG107335 N/A POA
018 FG107334 LBLI-AUFKLEBER:ARMATURENBRETT N/A POA
019 FG107336 GUARD-BLOWER N/A POA
020 FG107339 KANTENSCHUTZ:PVC-SCHWARZ N/A POA
021 FG100048 FILLISTER FLANGE HEAD SCREW £3.38 Add
022 712-0292 SPEED NUT (DNR) £3.72 Add
023 FG107341 KANTENSCHUTZ:PVC-SCHWARZ N/A POA
024 FG107338 SCHUTZGITTER MOTORHAUBE RECHTS N/A POA
025 FG107337 SCHUTZGITTER MOTORHAUBE LINKS N/A POA
026 FG107340 KANTENSCHUTZ:PVC-SCHWARZ N/A POA
027 FG100049 FILLISTER FLANGE HEAD SCREW £3.38 Add
028 FG55447 TREAD WITH APERTURE £193.02 Add
029 710-1798 SCREW M5X30mm (RED) £3.40 Add
030 736-0661 WASHER A 5,3 DIN 9021 £3.18 Add
031 712-0675 NUT:HEX:M5 x.80:DIN 985 £7.46 Add
032 FG107332 FG107332 £166.68 Add
033 FG107331 FENDER LEFT £166.68 Add
034 FG100049 FILLISTER FLANGE HEAD SCREW £3.38 Add
035 FG100144 DISTANCE RUBBER 8mm N/A POA
036 FG100048 FILLISTER FLANGE HEAD SCREW £3.38 Add
037 736-0685 WASHER £2.76 Add
038 712-0691 HEX NUT M6 DIN 985 £1.28 Add
039 FG105774 CABLE GROMMET N/A POA
040 710-04451 BOLT:M8x1.25x25 DIN 603 £3.02 Add
041 FG100144 DISTANCE RUBBER 8mm N/A POA
042 736-0700 FLAT WASHER £1.90 Add
043 712-0692 HEX NUT £2.57 Add
044 FG100368 FIXING, HOOD £16.79 Add
045 FG100166 EXTENSION SPRING £8.25 Add
046 FG106634 FG106634 N/A POA
047 FG106635 FG106635 £28.32 Add
048 FG100079 ROUND-HEAD SCREW £3.73 Add
049 736-0700 FLAT WASHER £1.90 Add
050 712-0692 HEX NUT £2.57 Add
051 FG100144 DISTANCE RUBBER 8mm N/A POA
052 FG105052 HEXAGONAL SCREW £2.69 Add
053 736-0734 WASH:FLAT:10,5 IDx20 OD DIN125 £3.57 Add
054 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.57 Add
055 FG106012 LAMELLA PLUG ROUND N/A POA
056 FG106637 RH RADIATOR SUPPORT BRACKET N/A POA
057 FG106638 LH RADIATOR SUPPORT BRACKET N/A POA
058 FG106636 AUSPUFFSCHUTZ UNIVERSALSTOSS- N/A POA
059 FG100115 HEXAGONAL SCREW £3.95 Add
060 7436-0734 N/A POA
061 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.57 Add
062 5032-u3-0002 BATTERY (No Returns on this item) (OBSOLETE) N/A
063 710-1753 HEX. SCREW:DIN 933-8.8 M6x20mm £3.41 Add
064 736-0648 WASHER:LOCK:B6:DIN 127 £2.12 Add
065 712-0689 NUT:HEX:M6-1:DIN 934 £2.16 Add
066 FG105142 LASHING STRAP N/A POA
067 FG105924 THROTTLE CABLE DIFFERENTIAL £65.62 Add
068 736-0668 WASHER £1.91 Add
069 712-0689 NUT:HEX:M6-1:DIN 934 £2.16 Add
070 FG105734 EXTENSION SPRING £24.00 Add
071 FG101020 FUEL TANK £179.14 Add
072 FG101021 CAP FUEL £24.15 Add
073 FG106193 FUEL LINE N/A POA
074 FG106195 TANK CLAMP N/A POA
075 FG106194 RETAINING PLATE N/A POA
076 FG106196 BRACKET HANDBRAKE N/A POA
077 710-1798 SCREW M5X30mm (RED) £3.40 Add
078 736-0768 WASHER:LOCK:B5 DIN 127: £3.41 Add
079 736-0661 WASHER A 5,3 DIN 9021 £3.18 Add
080 710-1705 HEX. SCREW:M5X16:DIN 933 8.8 £4.41 Add
081 736-0768 WASHER:LOCK:B5 DIN 127: £3.41 Add
082 736-0661 WASHER A 5,3 DIN 9021 £3.18 Add
083 FG100049 FILLISTER FLANGE HEAD SCREW £3.38 Add
084 FG105381 CONTROL VALVE £224.31 Add
085 FG107329 ZYLINDERSCHR.M8x35 DIN 912-8.8 N/A POA
086 736-0700 FLAT WASHER £1.90 Add
087 712-0692 HEX NUT £2.57 Add
088 710-1376 CAP SCREW £3.79 Add
089 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.33 Add
090 FG102001 CIRCLIP Ò 7/16" £4.15 Add
091 FG100021 ELECTRIC CLUTCH SMALL £263.03 Add
092 FG105870 KEY £4.29 Add
093 710-1690 HHCS:M6-1:16.00 £3.89 Add
094 736-0648 WASHER:LOCK:B6:DIN 127 £2.12 Add
095 736-0685 WASHER £2.76 Add
096 FG105714 Pulley £62.97 Add
097 FG105744 ADAPTER PLATE, ATTACH. BEARING £72.22 Add
098 FG100158 TWIN-GEAR PUMP £676.67 Add
099 22.3419.14 Screw N/A POA
100 736-0668 WASHER £1.91 Add
101 712-0691 HEX NUT M6 DIN 985 £1.28 Add
102 FG100116 HEXAGONAL SCREW £4.29 Add
103 736-0734 WASH:FLAT:10,5 IDx20 OD DIN125 £3.57 Add
104 712-0635 NUT M10-8 DIN 934 £2.42 Add
105 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.57 Add
106 FG100350 THROTTLE CABLE £50.69 Add
107 FG100351 HAND BRAKE CABLE £49.64 Add
108 FG100349 STARTER CABLE £57.21 Add
109 710-1017 TAP SCREW £2.52 Add
110 FG100013 ELAPSED HOUR COUNTER £171.55 Add
111 FG105334 KEY SWITCH £71.65 Add
112 FG100036 ROCKER SWITCH 2-POLE, GREEN £28.32 Add
113 FG100035 ROCKER SWITCH 2-POLE, BLACK £16.59 Add
114 FG100033 SIGNAL LAMP, BLIND GREEN £6.44 Add
115 FG100039 N/A POA
116 FG105500 Ò16,2mm TYP RAFI 1.60502.098 £21.79 Add
117 752S721W04 KAWA-MOTOR-TWIN £1,480.81 Add
118 FG102005 HEX-NUT N/A POA
119 FG100126 HEXAGON SCREW N/A POA
120 FG105856 COUNTERSUNK SOCKET SCREW N/A POA
121 736-0700 FLAT WASHER £1.90 Add
122 712-0692 HEX NUT £2.57 Add
123 FG105500 Ò16,2mm TYP RAFI 1.60502.098 £21.79 Add
124 FG100034 SIGNAL LAMP BLIND RED £6.44 Add
125 FG105039 FG105039 £9.36 Add
126 FG101017 BAND CLAMP FITTING £7.00 Add
127 FG107380 HITZEFEST MTD SCHWARZ GEPULVER N/A POA
128 FG106243 FG106243 N/A POA
129 FG107393 SCHUTZBLECH AUSPUFF N/A POA
130 FG105067 SCREW £19.24 Add
131 FG107294 V-BELT £38.26 Add
132 FG107357 KIT ENGINE PULLEY N/A POA
133 FG107358 KEILRIEMEN 13x700 Li DIN 2215 N/A POA
134 FG101016 HEXAGONALE SCREW £17.25 Add
135 710-1733 HEX. SCREW M8x35 DIN 933-8.8 £4.95 Add
136 FG107361 SENKSCHRAUBE M8x35 DIN7991-8.8 N/A POA
137 736-0700 FLAT WASHER £1.90 Add
138 712-0692 HEX NUT £2.57 Add
