MTD012142

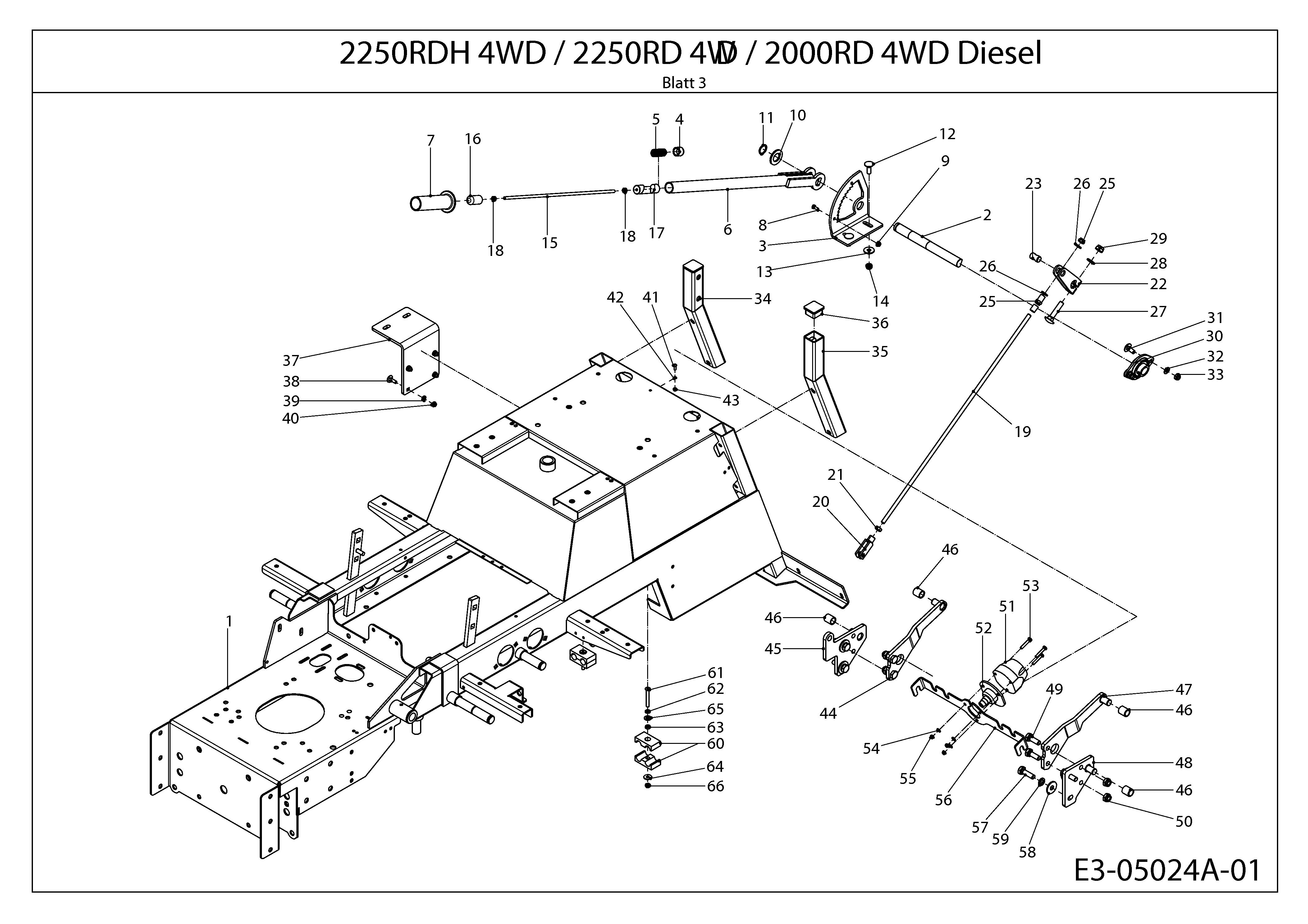

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD012142

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 FG10563 RAHMEN GENIETET N/A POA
002 FG105756 EXCAVATION SHAFT, MOW. MACH N/A POA
003 FG100194 EXCAVATION SEGMENT MOW. MACH. £52.70 Add
004 FG100379 SPRING GUIDE EXC. MOW. MACH. £18.60 Add
005 FG100223 PRESSURE SPRING £7.91 Add
006 FG100366 EXCAVATION LEVER £82.70 Add
007 FG100008 HANDLE BAR £16.59 Add
008 710-1707 HEX. SCREW M5x12 DIN 933-8.8 £4.41 Add
009 712-0675 NUT:HEX:M5 x.80:DIN 985 £7.46 Add
010 FG100056 WASHER £3.25 Add
011 716-04132 RING £3.12 Add
012 710-04451 BOLT:M8x1.25x25 DIN 603 £3.02 Add
013 736-0701 WASH:FLAT:8.4x24x2.00 DIN 9021 £3.76 Add
014 712-0692 HEX NUT £2.57 Add
015 FG100380 THREAD ROD, EXCAV. MOW. MACH. N/A POA
016 FG100377 PUSHER, EXCAV. MOW. MACH. £22.20 Add
017 FG100391 RASTER BOLT, EXCAV. MOW. MACH. £28.32 Add
018 712-0689 NUT:HEX:M6-1:DIN 934 £2.16 Add
019 FG105731 BRAKE LEVERAGE N/A POA
020 FG100176 CLEVIS RIGHT-HAND THREAD £26.52 Add
021 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.33 Add
022 FG105757 CLAMP LEVER, EXCAVATION ROD N/A POA
023 FG100365 RECEIVER, BRAKE LEVERAGE N/A POA
024 FG100383 SPACER N/A POA
025 712-0692 HEX NUT £2.57 Add
026 736-0700 FLAT WASHER £1.90 Add
027 FG105865 ROUND-HEAD-SCREW N/A POA
028 736-0734 WASH:FLAT:10,5 IDx20 OD DIN125 £3.57 Add
029 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.57 Add
030 FG105199 FLANGE BEARING £31.72 Add
031 FG100079 ROUND-HEAD SCREW £3.73 Add
032 736-0700 FLAT WASHER £1.90 Add
033 712-0692 HEX NUT £2.57 Add
034 FG12604 BRACKET RIGHT COMPLETE £111.10 Add
035 FG12605 BRACKET LEFT COMPLETE £111.10 Add
036 FG100342 PLUG PLASTICS: TUBE 35x35x1-3 £10.60 Add
037 FG105755 BRKT, ANGLE N/A POA
038 710-1687 BOLT £2.76 Add
039 736-0668 WASHER £1.91 Add
040 712-0691 HEX NUT M6 DIN 985 £1.28 Add
041 FG106136 FILLISTER FLANGE HEAD SCREW N/A POA
042 FG106134 LOCK WASHER A 4,3 DIN 6797 N/A POA
043 712-0636 NUT: HEX: M4: DIN 985 £4.59 Add
044 FG106141 HANGER ASS'Y TO FIX, RH £83.49 Add
045 FG106142 HANGER ASSEMBLY RH £77.28 Add
046 FG105423 FLOATING BEARING, NO COLLAR £7.20 Add
047 FG106143 HANGER ASS'Y TO FIX, LH £83.49 Add
048 FG106144 SUSPENSION LEFT £65.88 Add
049 FG105052 HEXAGONAL SCREW £2.69 Add
050 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.57 Add
051 FG105072 Wall plug £16.59 Add
052 FG106125 Gasket N/A POA
053 FG106138 LENS HEAD SCREW W. CROSS SLOT N/A POA
054 736-0602 WASHER A 5,3 DIN 125 £3.60 Add
055 712-0675 NUT:HEX:M5 x.80:DIN 985 £7.46 Add
056 FG106140 SUPPORT REAR CIRCUIT POINTS £68.75 Add
057 FG100115 HEXAGONAL SCREW £3.95 Add
058 736-0702 WASHER £2.42 Add
059 736-0686 LOCK WASHER B10 DIN 127 N/A POA
060 FG106208 SCHELLENHÄLFTE D=16mm FÜR N/A POA
061 FG107409 SENKSCHRAUBE M6x45 DIN7991-8.8 N/A POA
062 736-0700 FLAT WASHER £1.90 Add
063 712-0689 NUT:HEX:M6-1:DIN 934 £2.16 Add
064 736-0668 WASHER £1.91 Add
065 736-0685 WASHER £2.76 Add
066 712-0691 HEX NUT M6 DIN 985 £1.28 Add
