MTD012140

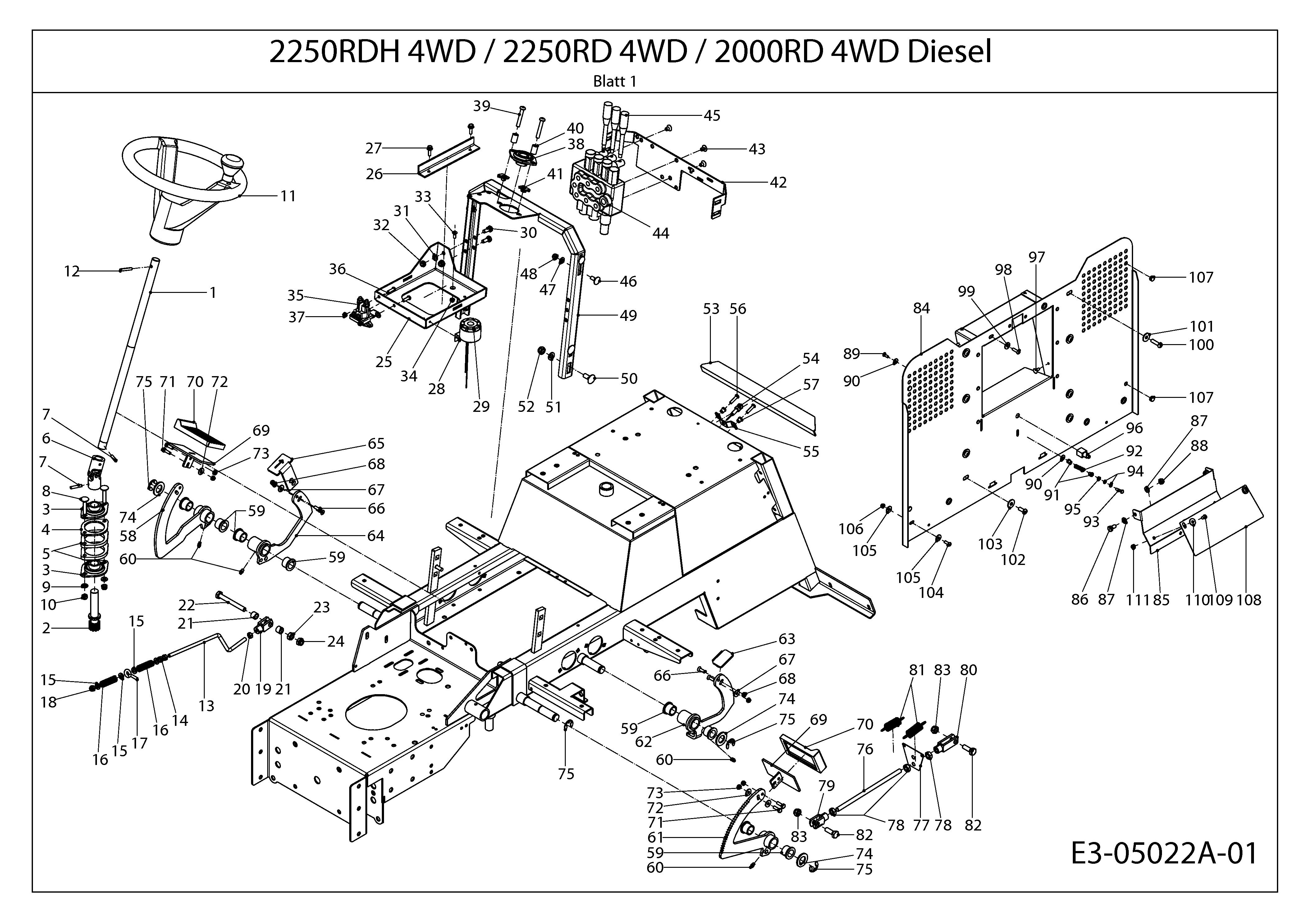

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD012140

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 FG107354 STEERING ROD N/A POA
002 FG100388 STEERING SHAFT SHORT £152.96 Add
003 FG105199 FLANGE BEARING £26.57 Add
004 FG105672 INDERMEDIATE PLATE, STEERING N/A POA
005 FG105931 INTERMEDIATE PLATE, STEERING £26.57 Add
006 FG100180 CARDAN JOINT £116.92 Add
007 FG100069 C-LOCK PIN £3.05 Add
008 710-1375 SCREW £3.69 Add
009 736-0700 FLAT WASHER £2.63 Add
010 712-0692 HEX NUT £3.10 Add
011 FG100336 STEERING WHEEL £190.29 Add
012 FG100068 C-LOCK PIN N/A POA
013 FG107295 ANSTEUERUNG STEUERVENTIL N/A POA
014 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.72 Add
015 736-0700 FLAT WASHER £2.63 Add
016 FG105732 COMPRESSION SPRING £12.75 Add
017 FG105862 ÖSENSCHRAUBE M6x20 St VERZINKT N/A POA
018 712-0692 HEX NUT £3.10 Add
019 FG106523 CLEVIS RIGHT-HAND THREAD £19.91 Add
020 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.72 Add
021 FG107293 SPACER N/A POA
022 FG105049 HEXAGON SCREW £4.36 Add
023 FG105596 HEX NUT, THIN TYPE £2.79 Add
024 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.66 Add
025 FG105372 BATTERY HOLDER £97.01 Add
026 FG12603 BATTERIEKLEMMUNG N/A POA
027 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
028 FG106135 STD-BLINDNIET A 4x8 DIN 7337 N/A POA
029 FG12544 SIGNALGEBER KPL. £66.31 Add
030 710-1681 HEX BOLT M8 X 20 DIN 933 (RED) £3.24 Add
031 736-0700 FLAT WASHER £2.63 Add
032 712-0692 HEX NUT £3.10 Add
033 FG100093 COUNTERSUNK SOCKET SCREW £2.30 Add
034 712-0691 HEX NUT M6 DIN 985 £2.66 Add
035 FG106327 MAGNETSCHALTER £44.26 Add
036 FG105607 FILLISTER HEAD SCREW WITH £2.93 Add
037 712-0691 HEX NUT M6 DIN 985 £2.66 Add
038 FG105199 FLANGE BEARING £26.57 Add
039 FG107342 LINSENFLANSCHKOPFSCHR.M8x45 N/A POA
040 FG106720 PUMP CONTROL SPACER ASM. N/A POA
041 726-0365 SPEED NUT M8, U-TYPE 000.02.520 £5.21 Add
042 FG105172 CONTROL BLOCK RETAINER N/A POA
043 FG105243 COUNTERSUNK SOCKET SCREW N/A POA
044 FG105174 TRIPLE CONTROL BLOCK £676.99 Add
045 FG105174HEB HANDHEBEL ZU 3FACH STEUERBLOCK £20.33 Add
046 FG100079 ROUND-HEAD SCREW £3.34 Add
047 736-0700 FLAT WASHER £2.63 Add
048 712-0692 HEX NUT £3.10 Add
049 FG105494 RETAINING BRACKET DASHBOARD N/A POA
050 FG100077 ROUND-HEAD SCREW N/A POA
051 736-0734 WASH:FLAT:10,5 IDx20 OD DIN125 £3.20 Add
052 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.66 Add
053 FG105481 SEALING PROFILE £34.56 Add
054 FG106513 POSITION SENSOR £74.70 Add
055 FG107218 HOLDER CONTACT £25.91 Add
056 FG106390 LINSENFLANSCHKOPFSCHR.M6x25 N/A POA
057 FG101010 BLIND-RIVET NUT ZINCED £4.25 Add
058 FG100355 PEDAL ARM DRIVE AXLE N/A POA
059 FG100295 FLOATING BEARING WITH COLLAR £16.13 Add
060 FG105045 CONE LUBRICATING ELEMENT £4.36 Add
061 FG100389 PEDAL RETAINER, BRAKE N/A POA
062 FG105730 PEDAL RETAINER DIFF. BARRIER N/A POA
063 FG105933 DIFFERENTIAL ACTUATION N/A POA
064 FG105143 PEDAL RETAINER REVERSE GEAR N/A POA
065 FG105667 RETURN PEDAL £27.63 Add
066 FG105059 COUNTER SUNK SOCKET SCREW £2.30 Add
067 736-0685 WASHER £3.26 Add
068 712-0691 HEX NUT M6 DIN 985 £2.66 Add
069 FG100390 PEDAL PLATE FORWARD N/A POA
070 FG100004 pedal rubber N/A POA
071 710-1753 HEX. SCREW:DIN 933-8.8 M6x20mm £2.70 Add
072 736-0685 WASHER £3.26 Add
073 712-0691 HEX NUT M6 DIN 985 £2.66 Add
074 FG100056 WASHER £2.93 Add
075 FG100083 RETAINING WASHER £23.81 Add
076 FG100369 OPERATION LEVERAGE, BRAKE £23.21 Add
077 FG100196 FASTENING PLATE, SPRING £28.82 Add
078 712-0635 NUT M10-8 DIN 934 £2.93 Add
079 FG55294 GABELKOPF A 10x20-M10 DIN71752 N/A POA
080 FG55295 GABELKOPF A 10x40-M10 DIN71752 £13.39 Add
081 FG100163 TENSION SPRING £11.93 Add
082 FG105052 HEXAGONAL SCREW £2.54 Add
083 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.66 Add
084 FG106051 REAR PLATE, RIVETED £158.58 Add
085 FG105828 SHUT DOWN PLATE £38.97 Add
086 710-1376 CAP SCREW £4.50 Add
087 712-0692 HEX NUT £3.10 Add
088 736-0700 FLAT WASHER £2.63 Add
089 710-1705 HEX. SCREW:M5X16:DIN 933 8.8 £4.00 Add
090 736-0661 WASHER A 5,3 DIN 9021 £3.85 Add
091 FG105863 BLIND-RIVET NUT ZINCED N/A POA
092 FG105855 PRESSURE SPRING £6.63 Add
093 FG100121 HEXAGON SCREW N/A POA
094 736-0602 WASHER A 5,3 DIN 125 £2.70 Add
095 712-0675 NUT:HEX:M5 x.80:DIN 985 £4.25 Add
096 FG100041 CONTACT SWITCH £35.35 Add
097 FG105835 PIVOT N/A POA
098 FG105206 FILLISTER FLANGE HEAD SCREW £3.05 Add
099 736-0685 WASHER £3.26 Add
100 FG55451 FG55451 N/A POA
101 736-0701 WASH:FLAT:8.4x24x2.00 DIN 9021 £3.80 Add
102 FG105179 FILLISTER FLANGE HEAD SCREW £4.39 Add
103 736-0701 WASH:FLAT:8.4x24x2.00 DIN 9021 £3.80 Add
104 FG100048 FILLISTER FLANGE HEAD SCREW £3.05 Add
105 736-0685 WASHER £3.26 Add
106 712-0691 HEX NUT M6 DIN 985 £2.66 Add
107 FG106188 CABLE GROMMET SELF CONTAINED N/A POA
108 FG107103 ADJUSTMENT PLATE N/A POA
109 FG107104 SCREW M6x12 DIN 7380-10.9 GAL N/A POA
110 736-0685 WASHER £3.26 Add
111 712-0691 HEX NUT M6 DIN 985 £2.66 Add
