MTD004852

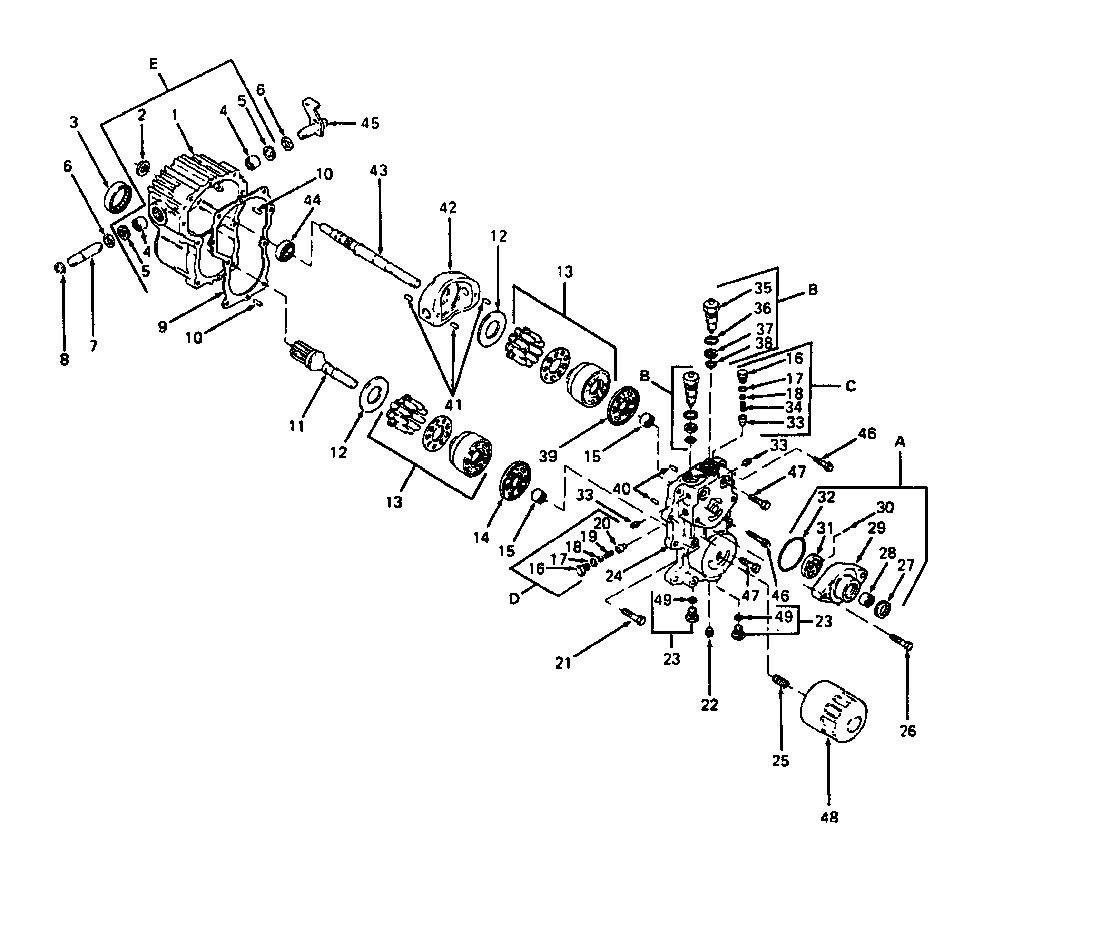

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	SU-3103069	HOUSING TRANSMISSION	£2,329.22	Add
002	SU-5000174	SEAL OIL	£86.37	Add
003	SU-9001370-0003	BEARING HYD PUMP SHAFT ROLLER	£305.05	Add
004	SU-9001455-0004	BEARING NEEDLE	£121.62	Add
005	SU-9008000-6701	NO LONGER AVAILABLE	N/A	POA
006	SU-9009625-6904	WASHER TRUNNION SHAFT SEAL	£5.91	Add
006	SU-9009625		N/A	POA
007	SU-3101045	SHAFT TRUNNION	£169.45	Add
008	SU-9006320-0069	RING RETAINING	£6.18	Add
009	SU-3102875	GASKET	£16.28	Add
00B	SU-9500085P	VALVE ASSY	£271.96	Add
00C	SU-9510385-0003	KIT RELIEF VALVE	£469.92	Add
00D	SU-9510385-0001	KIT RELIEF VALVE	£420.37	Add
00E	SU-3103078	HOUSING ASSEMBLY	£2,615.88	Add
010	SU-9004800-2506	PIN TRANSMISSION HOUSING	£8.54	Add
011	SU-3102907	SHAFT MOTOR	£686.48	Add
012	SU-3102020	PLATE THRUST	£53.69	Add
013	SU-3103136	KIT CYL BLOCK MOTOR	£2,824.44	Add
014	SU-3102687	PLATE VALVE	£659.25	Add
015	SU-9001355-0001	BEARING CENTRE HOUSING NEEDLE	£63.54	Add
016	SU-3100055	PLUG	£24.95	Add
017	SU-9004201-3100	O-RING	£8.54	Add
017	SU-9004201-0001		N/A	POA
018	SU-9510447	KIT SHIM	£59.38	Add
019	SU-3101536	SPRING CHARGE RELIEF VALVE	£10.34	Add
020	SU-3100053	CONE RELIEF VALVE	£59.66	Add
021	SU-9007200-3728	SCREW HEX	£10.11	Add
022	SU-9005001-2500	PLUG PIPE	£14.63	Add
023	SU-9005100-7500	PLUG	£57.93	Add
024	SU-9510643	CENTER-SECTION	£1,454.93	Add
025	SU-3101069	PIPE	£25.95	Add
027	721-3032	SEAL LIP SU-9008000-6201	£26.20	Add
028	SU-9001455-0002	BEARING NEEDLE	£123.59	Add
030	SU-9004875-0076	PIN CHARGE PUMP ROTOR	£141.59	Add
032	SU-9004100-0360	O-RING (RED)	£12.83	Add
033	SU-9005001-1200	PLUG PIPE	£10.44	Add
034	SU-3102301	SPRING IMPLIMENT RELIEF	£12.48	Add
036	SU-9004201-6200	O-RING (RED)	£7.63	Add
037	SU-9006110-0160	NO LONGER AVAILABLE	N/A	POA
038	SU-9004100-0160	O-RING	£9.58	Add
039	SU-3102731	PLATE HYD CYL BLOCK VALVE	£692.09	Add
040	SU-9004800-1508	PIN HYD PUMP CYL BLOCK	£3.34	Add
041	SU-9004690-1910	PIN SPRING	£6.18	Add
042	SU-3103072	SWASHPLATE	£435.50	Add
043	SU-3102989	SHAFT	£1,681.18	Add
044	SU-9001310-0001	BEARING BALL	£62.24	Add
045	SU-3103181	SHAFT ASSY TRUNNION	£936.45	Add
046	SU-9007500-3722	SCREW 12 POINT	£17.62	Add
047	SU-9007200-3724	SCREW HEX	£9.71	Add
048	723-3014	FILTER,OIL	£30.42	Add
049	SU-9004201-5000	O-RING	£7.63	Add
